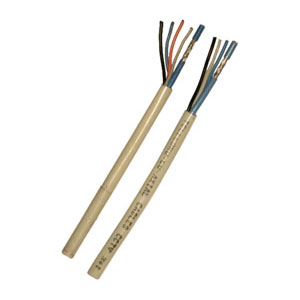

CCTV Cables

Garmal CCTV cables are offeres in three types namely 3+1 CCTV, 4+1 CCTV and 6+1 CCTVcables. Today the world is moving towards greated planned security and visibility. CCTV cameras play a big part in security plans, remote monitoring and visibility and thier presence is increasing rapidly. The sensitive nature of CCTV use means that the cables and wires used have to be the hieghest quality and reliabitily. In CCTV cable coaxial cables form the carrier for video signal and other core form the Carriers for power. Coaxial cables are designed to transmit the complete video frequency range with minimum distortion or attenuation GARMAL CCTV cables are designed to optimize the quality of video signals which are transmitted through the coaxial cables in the cctv cables.

Power Cables
Coaxial Cables

Type
No. of Strand /
Size of Strand
mm
PVC Insulation
Thickness mm
Core
Colour
No. of Strand
Size of Strand
mm
HD Insulation
Thickness
mm
Screened
Material
Over all
Diameter of
Cable
3+1
1/0.50
0.20
Red, Yellow, Blue
1/0.80
0.30
Alum. Alloy
5.70
4+1
1/0.50
0.20
Red, Yellow, Blue, Black
1/0.80
0.30
Alum. Alloy
5.90
6+1
1/0.50
0.20
Red, Yellow, Blue, Orange, Black, Green
1/0.80
0.30
Alum. Alloy
6.80
